Saw Blade Segment Auto Brazing Machine For Diamond Saw Blade 800 - 2200MM
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|
|
Detail Information |
|||
| Model: | FL-HJ-2200 | Application Range: | Diameter 800 To 2200 MM |
|---|---|---|---|
| Size: | 650x700x1900MM | Verticality: | <0.03mm |
| Face Runout: | =<0.03mm | Weight: | 200kgs |
| Voltage: | AC 220V | Power: | 0.75kw |
| Air Source Pressure: | 0.5-0.8Mpa | Cooling Water Pressure: | >=0.2mpa |
| Cooling Water Flow: | 2-5L/Min | ||
| High Light: | auto brazing machine,auto brazing machine 800MM,saw blade segment machine 2200MM |
||
Product Description

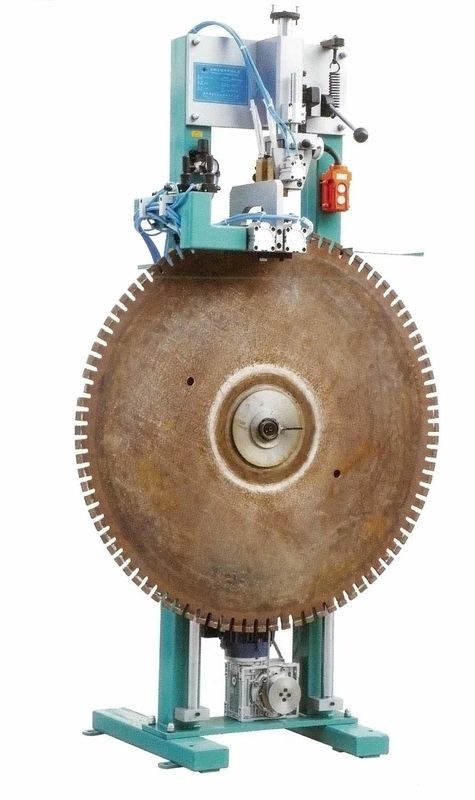

Semi automatic Brazing Machine for diamond saw blade segment
For Diameter D800 - D2200mm Diamond Saw Blade
The saw blank is hold by dual cylinders, as to keep the welding precision against the heating and the possible deformation of saw
blank followed by.
The dual cylinders hoding would ensure the welding precision even the saw blank is distorted; to make sure the segments stay right in the mid-line of the saw blank.
The segments clamp is mechanical centered, ensuring the symmetry and precision of the welding.
Easy to operate, any healthy labor can be qualified to operated after simple training.
