0.06Mpa Fully Automatic Brazing Machine For Diamond Saw Blade Segment
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|
|
Detail Information |
|||
| Model: | HJ-1600 | Voltage: | AC380V |
|---|---|---|---|
| Power: | 1kw | Centering Accuracy: | +=0.03mm |
| Divided Teeth Error: | +0.1mm | Hydraulic Pressure: | >=0.06Mpa |
| Air Pressure: | >0.6Mpa | Application Arrange: | Diameter 600-1600mm |
| Weight: | 350Kgs | Size: | 2400x1070x930mm |
| High Light: | 0.06Mpa automatic Brazing Machine,600mm automatic Brazing Machine,1600mm diamond segment brazing machine |
||
Product Description

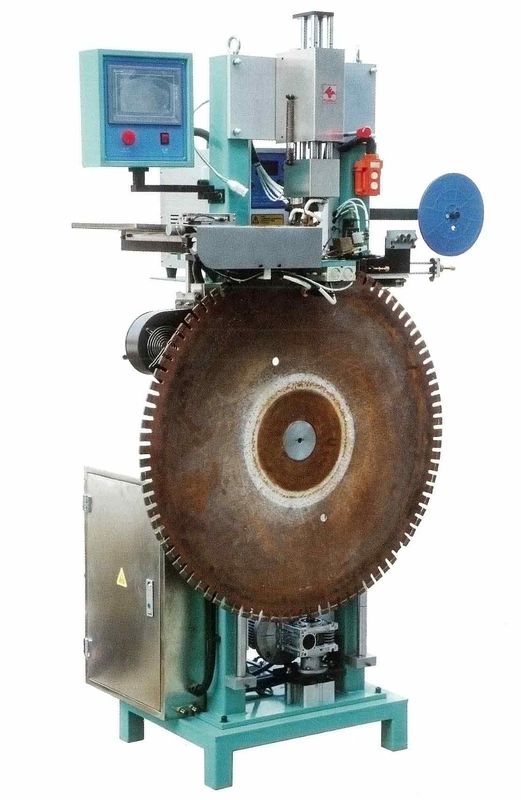

Fully Automatic Brazing Stand for Diamond Saw Blade Segment
For welding diameter D600 - D1600 diamond saw blade
This machine uses computer program to control;
It can automatic finish all welding procedures, the saw blade is automatic centering, automatic to divide teeth, automatic to feed segments and welding;
Designing automatic centering system, centering accuracy +-0.03mm, operation simply;
Homothermal temperature flux container ensures flux uniform coated and make sure welding strengthen;
The wear resisting structure design of copperplate can guarantee the welding precision of old and new blank;
Imported key parts, long work life;
Guided OS system,operation simply.
