RYJ 2000A Sintering Presser Diamond Segment Machine
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|
|
Detail Information |
|||
| Model: | RYJ-2000A | Rated Pressure: | 250KN |
|---|---|---|---|
| Rated Oil Pressure: | 20MPa | Rammer Area: | 200x200mm |
| Rated Power Of Heating: | 60Kw | Rated Current Of Heating: | 10000A |
| Motor Power: | 0.75Kw | Parallelism Of Rammer: | <0.1mm |
| Temperature Measure Compoment: | Infrared Temperature Measurement | Size: | 1060x1250x1680 Mm |
| Weight: | 1200 Kgs | ||
| High Light: | 2000A Diamond Segment Machine,20MPa Diamond Segment Machine,60Kw Sintering Presser |
||
Product Description

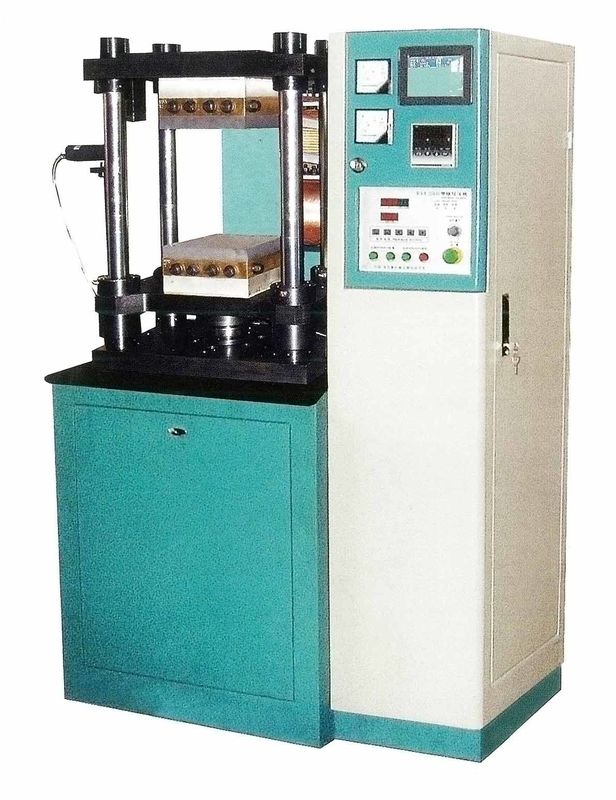

RYJ 2000A Sintering Presser
Description
RYJ-2000A Sintering presser.
This machine is pomputer controlled by preset program, it can save 100 sets of parameters of pressure and temperature. It is widely used for sintering various of diamond products.
Automated controlled by computer, far infrared thermo-metrical.
Sintering pressure: 250KN.
Rated oil pressure: 20MPa.
Rammer size: 250 x250mm
Heating power: 60KVA.
Current of heating: 10000A.
Motor power: 0.75KW
Jacket water: 30L/min.
Net weight: 1200kgs.
Dimension: 1250*1060*1680mm
It is suitable for manufacturing diamond or powder metallurgical products such as diamond segments.

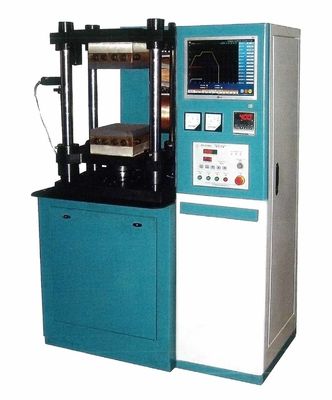

RYJ-2000C Sintering presser
This machine is pomputer controlled by preset program, it can save 255 sets of parameters ,by 13 segmentof pressure and temperature and time.With 15 inches color LCD screen can display technology parameter, curves of pressure and temperature and Chinese menu.
It is widely used for sintering various of diamond products.
Sintering pressure: 250KN.
Rated oil pressure: 20MPa.
Rammer size: 250x250mm
Heating power: 60KVA.
Current of heating: 10000A.
Motor power: 0.75KW
Jacket water: 30L/min.
Net weight: 1200kgs.
Dimension: 1300*1060*1600mm
Temperature measure component: infrared temperature measurement.
It is suitable for manufacturing diamond or powder metallurgical products such as diamond segments.
