220V Diamond Segment Brazing Welding Strength Testing Machine
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|
|
Detail Information |
|||
| Model: | JC-600 | Power: | 1kw |
|---|---|---|---|
| Voltage: | AC 220V | Control And Os: | Touch Screen And PLC |
| Application Range: | Diameter 200 To 600 MM | Size: | 900 X 500 X1300 Mm |
| Segment Type: | All Types | Moment Of Force: | 4-6 NM |
| Air Source Pressure: | 0.8Mpa | Air Source Flow: | 30L/min |
| Air Source Connector Size: | Diameter 8mm | Weight: | 170kgs |
| High Light: | 220V diamond segment brazing machine,8mm diamond segment brazing machine,0.8Mpa welding strength testing machine |
||
Product Description

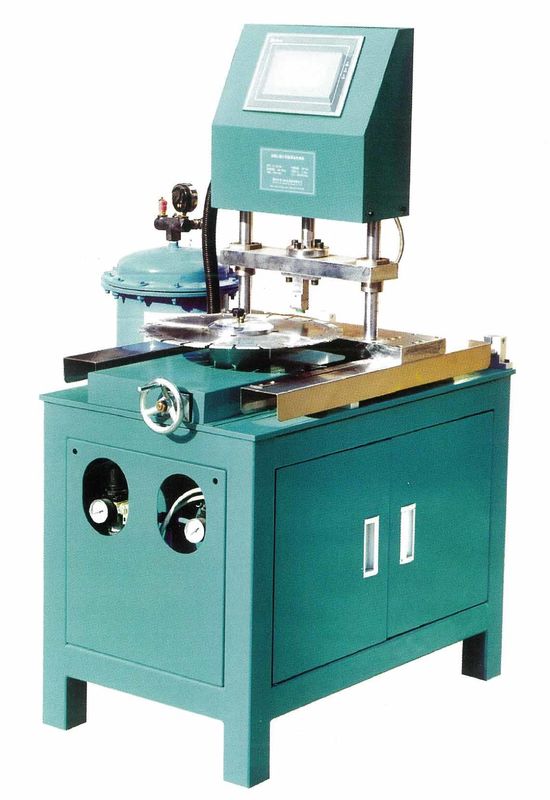

Diamond Saw Blade Welding Strength Testing Machine
Usage: for testing the welding strength between diamond segments and saw blade automatically.
The segments can be located automatically and the quantity of segments can be set as wish;
The tester can be used to test saw blades of all kinds of slot;
The welding strength standard can be set between 4-60N.M;
The machine will record the number of segments tested and stop working when it reaches the preset number;
Using compressed air as its power;
Small volume easy to operate, saving energy and good looking
