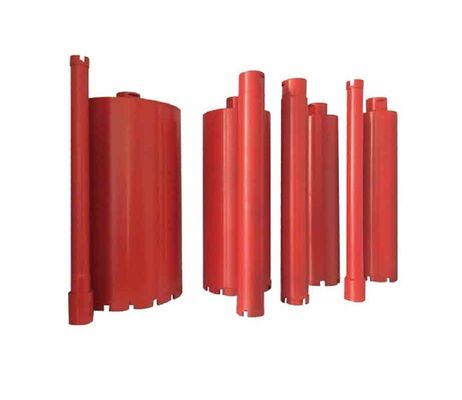

1 1/4 UNC Diamond Drill Core Bit 25mm Diamond Drill Bit
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|
|
Detail Information |
|||
| Size: | Diameter 25 To 350 Mm | Purpose: | For Drill Concrete And Stone |
|---|---|---|---|
| Speed: | Fast Speed | Suitable: | Dry/Wet Drilling |
| Quality: | Good Quality | Packing: | In Carton |
| High Light: | 1 UNC Diamond Drill Core Bit,1/4UNC Diamond Drill Core Bit,25mm diamond drill bit odm |
||
Product Description
Diamond Drill Core Bit
1 1/4 UNC
|
Item Number |
Size |
Segment Size |
Teeth Number |
|
BY-S001 |
25×300/350/400/450×1 1/4UNC |
15×3.5×8 R2 (R16) |
4 |
|
BY-S002 |
32×300/350/400/450×1 1/4UNC |
15×3.5×8 R2 (R16) |
4 |
|
BY-S003 |
42×300/350/400/450×1 1/4UNC |
24×3.5×8 R3 (R23) |
4 |
|
BY-S004 |
51×300/350/400/450×1 1/4UNC |
24×3.5×8 R4 (R25) |
5 |
|
BY-S005 |
63×300/350/400/450×1 1/4UNC |
24×3.5×8 R5 (R30) |
6 |
|
BY-S006 |
71×300/350/400/450×1 1/4UNC |
24×3.5×8 R5 (R30) |
7 |
|
BY-S007 |
83×300/350/400/450×1 1/4UNC |
24×3.7×8 R6 (R40) |
7 |
|
BY-S008 |
92×300/350/400/450×1 1/4UNC |
24×3.7×8 R6 (R55) |
8 |
|
BY-S009 |
102×300/350/400/450×1 1/4UNC |
24×4.0×8 R6 (R55) |
9 |
|
BY-S010 |
110×300/350/400/450×1 1/4UNC |
24×4.0×8 R6 (R55) |
9 |
|
BY-S011 |
127×300/350/400/450×1 1/4UNC |
24×4.0×8 R8 (R70) |
11 |
|
BY-S012 |
132×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
11 |
|
BY-S013 |
140×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
11 |
|
BY-S014 |
152×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
12 |
|
BY-S015 |
160×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
12 |
|
BY-S016 |
172×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
12 |
|
BY-S017 |
180×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
12 |
|
BY-S018 |
200×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
15 |
|
BY-S019 |
250×300/350/400/450×1 1/4UNC |
24×4.5×8 R8 (R70) |
16 |
|
BY-S020 |
300×300/350/400/450×1 1/4UNC |
20×5.0×8 R10 (R200) |
17 |
|
BY-S021 |
320×300/350/400/450×1 1/4UNC |
20×5.0×8 R10 (R200) |
18 |
|
BY-S022 |
350×300/350/400/450×1 1/4UNC |
20×5.0×8 R10 (R200) |
19 |
